Automatic pallet grip system in which the film bottom narrows to form a film rope, and the film rope grips the pallet and the items while wrapping.
Features:
1. Save Packing Supplies
2. Pallet gripping mechanism that works automatically
3. Intelligent Control Panel
4. Turntable with Slewing Bearings
5. Conveyor that is long-lasting
6. Heat type cut film and clamp film function in a new design
7. Control System SIEMENS
8. Remote control System
| Specifications |
| Model |

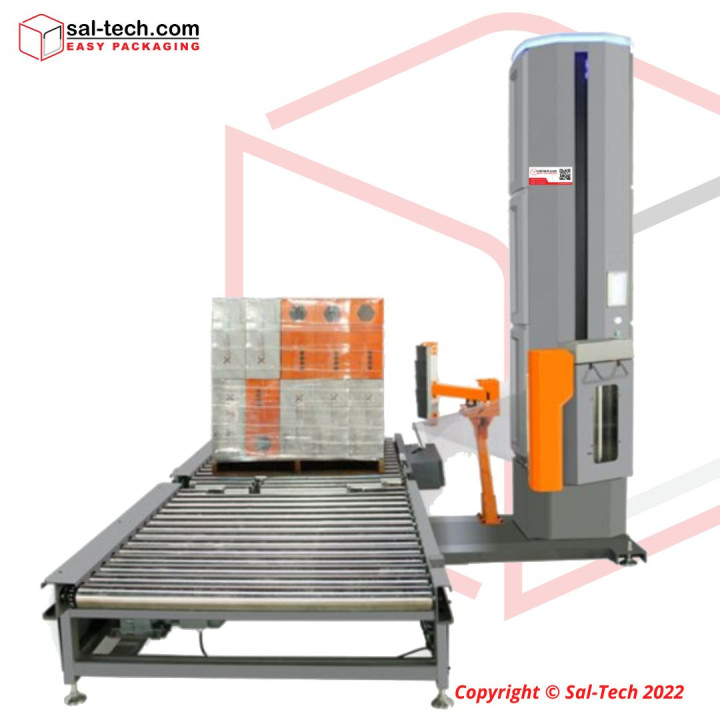

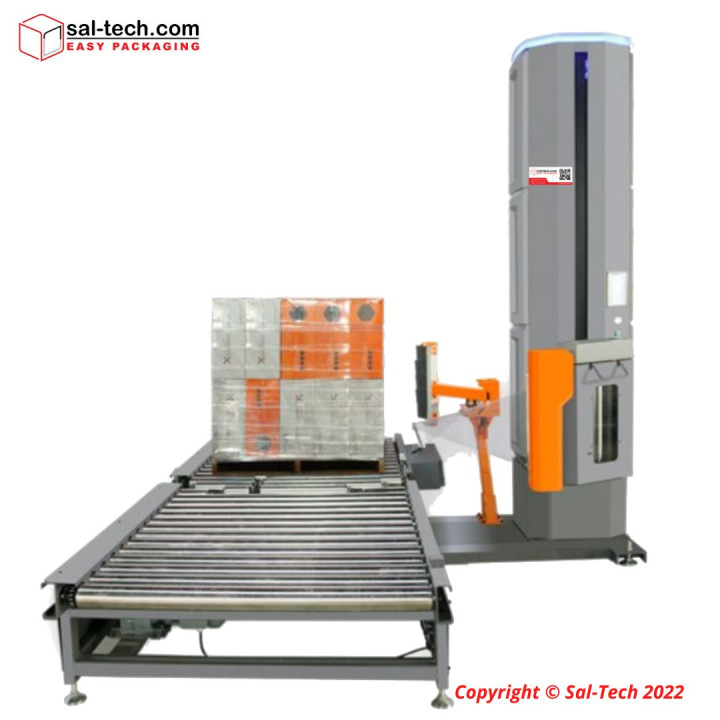

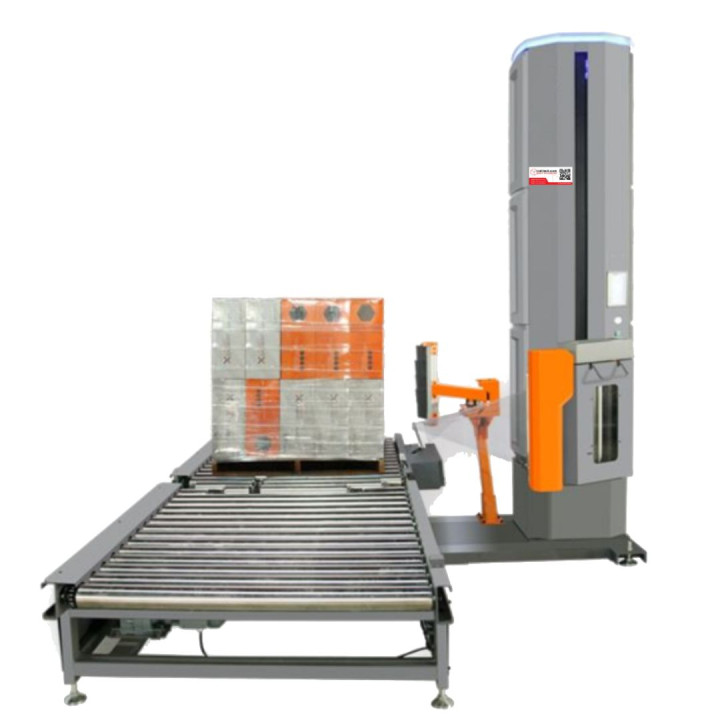

STEP S300 Fully Auto Pallet Wrapper |
| Item No. |
43010300 |
| Maximum wrapping speed |
25-30 loads/hour |
| Load Size |
1.2x1.2m |
| Maximum Wrapping Height |
2300mm |
| Turntable Speed |
0-16RPM(Adjustable) |
| Turntable Size |
1800mm(length side) |
| Turntable Drive |
1.5PH |
| Film & Clamp Cut |
Automatic (Heat type) |
| Max load weight |
2000KG |
| Standard Film Width |
500mm |
| Constant Film Delivery Force |
Standard |
| Standard Pre-Stretch |
250% pre-stretch |
| Roller Materials |
Galvanized Roller diameter:76mm |
| Film Capacity |
250mm Diameter |
| Film Delivery System |
Power Roller -Stretch Plus |
| Film Rope System |
Optional |
| Weighing Scale |
Optional |
| Machine Weight |
1200KG |
| Machine Size |
Approx. L:3202 x W:2006 x H:3202 mm See Layout |
| Turntable technology |
Slewing Ring |
| Voltage |
380V/50HZ 3phase |
